Click any pic for larger view:
|
| Slots are stress-relieved, do not extend through to edge of rotor. |
 |
| Directional slotting for improved effectiveness and aesthetics. |
 |
| Minimum thickness markings on every rotor for quick maintenance checks. |
 |
| Correct retaining screw position. |
 |
| Heat dam provides maximum protection from heat transfer to wheel hub. |
|
|||||||||||
|
The Ultimate OE-type
replacement
brake rotors for BMW. Available for:

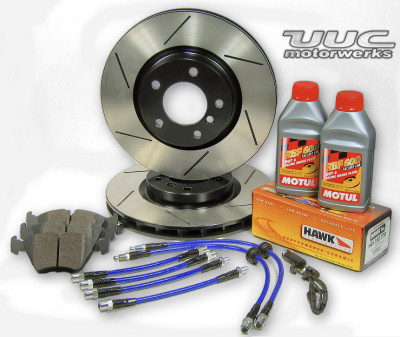

UUC recommends  Low-dust Performance Ceramic brake pads available for ordering with rotors. (click here for more info) |
 |
||||||||||
NEW!
Special discounted package pricing on all UUC rotor kits!
Add Hawk brake pads, UUC stainless steel lines, and Motul brake fluid at
combined pricing far below individual item cost.
For PRICING, click the
button next to your car model in the application list
below.
What makes the best brake rotors?
Details, details, details, and value!
UUC Ultimate OE-size replacement rotors are slotted, plated, and
manufactured using the best techniques and materials.
Optional Slotting: there are many reasons to slot rotors.
Primarily, slotting aids in removal of water and debris on the rotor surface,
evacuation of hot pad "off gassing" vapor, and provides a visual
wear indicator.
  |
Details: These slots do not extend all the way to the edge of the rotor for a very specific reason; this maintains the structural integrity of the rotor. Other brands with slots all the way to the end have created "stress risers" where cracking may develop. No such problem exists with this design. Additionally, directional slotting enhances effectiveness. |
 |
NO DRILLING! Drilled holes in rotors often used for "show" are prone to cracking and catastrophic failure. The holes create stress risers which will lead to this sort of failure. Additionally, drilled holes do not improve cooling, rotary-vane rotors lose efficiency when drilled because cooling air does not not pass through the rotor circumferentially but is instead prematurely evacuated by the holes.. |
Plating: Multi-stage black plating resists
unsightly corrosion on the rotor hub and unswept areas of the rotor face.
Rotor after normal use, normal silver color in swept area.
Precision: due to the ultra-precise tolerances used for run-out,
parallelism, and surface flatness, absolutely no pre-installation machining
is required for smooth operation without vibration or shimmy.
Manufacturing details:
- Meets SAE standards for brake rotor iron.
- Alloying: Copper and Chromium added to achieve specific hardness and tensile strength.
- Precision-controlled cooling during the casting process creates a uniform distribution of graphite flakes, thus increasing wear resistance and the ability to dissipate heat. In contrast, premature cooling of cast iron can cause iron brittleness, thus making the brake rotor more likely to warp or crack, especially when overheated under hard braking conditions.
- Run-out less than .004".
- Parallelism of machined surfaces within .0005" tolerance.
This attention to detail makes
these rotors suitable for street, auto-x, track, and race use.
Pricing and fitments:
|
CHASSIS
|
YEAR
|
MODEL | Hawk
Performance Ceramic brake pads available at additional cost for most applications. See PACKAGE PRICING options available with lines, pads, fluid, sensors when ordering. |
|
 |
||||
|
E46
|
'01-'06
|
M3 | SLOTTED FRONT - $275/pair | |
| SLOTTED REAR - $275/pair | |
|||
|
||||
|
E46
|
'01-'05
|
330i/Ci/Xi | SLOTTED FRONT - $275/pair | |
| SLOTTED REAR - $235/pair | |
|||
|
||||
|
E46
|
'99-'05
|
328, 325, 323 (cabrio & touring, see below for coupe/sedan), 318 | SLOTTED FRONT - $150/pair | |
|
|
|
* rear not
for 323Ci or 323i |
SLOTTED REAR - $165/pair | |
|
E46
|
'99-'00
|
323i coupe/sedan | SLOTTED FRONT - $185/pair | |
|
|
|
|||
|
||||
|
E36
|
'94-'99
|
M3 | SLOTTED FRONT - $180/pair | |
|
|
|
SLOTTED REAR - $155/pair | |
|
|
||||
|
E36
|
'92-'99
|
328, 325, 323, 318* | SLOTTED FRONT - $150/pair | |
| PLAIN FRONT - $68/pair | |
|||
|
|
|
* rear not
for 328 Convertible or 318Ti |
REAR - $165/pair | |
|
||||
| E30 | '84-'91 | 325, 323, 320, 318, 316 all models including iX |
SLOTTED FRONT - $89/pair | |
| * rear not for 325ix | SLOTTED REAR - $58/pair | |
||
|
||||
| Z3 | '99-'04 | M Coupe/Roadster | SLOTTED FRONT - $180/pair | |
| Z3 | '01-'04 | 3.0i | SLOTTED FRONT - $155/pair | |
|
||||
|
MINI
|
'01-'05
|
All models | SLOTTED FRONT - $185/pair | |
|
|
|
SLOTTED REAR - $145/pair | |
|
