Stainless steel gaul
plate included.

and ,
2.8
, 525i
, 530i, 528i, 525i


  The return of the quality "budget" sprung-hub flywheel...

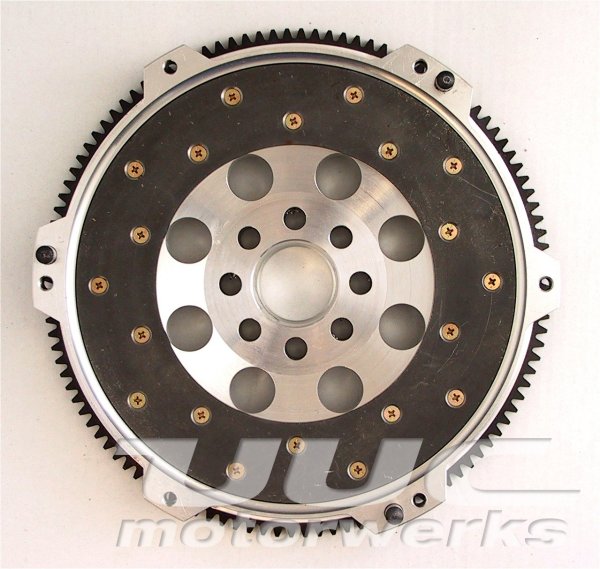

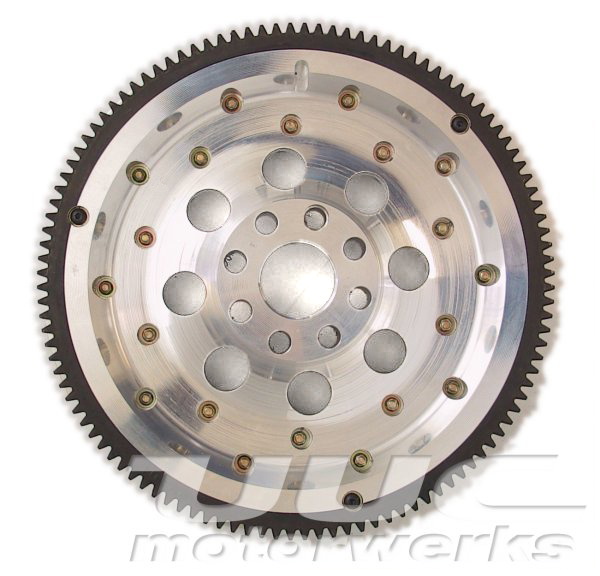

Long known as the true pioneer of BMW lightweight flywheels with sprung-hub clutches, UUC is now producing our classic "Stage 1" flywheel again.

The Stage 1 flywheel uses a standard-type E36 M3 pressure plate and the E34 M5 sprung hub disk.

Please note:
  Using the M5 disk is not the same as using the entire M5 clutch kit as in our "Stage 2" flywheel/clutch package.  Maximum power capability is always an interactive function between the maximum clamp load of the pressure plate and the clutch disk material.  The M3 pressure plate does not have the same clamp load as the M5 pressure plate.  Both M3 and M5 clutch disks are the same material, but the M5 disk has a sprung-hub center to reduce gearbox rattle/rollover noise at idle.

Buy the race-proven best flywheel offered for BMW at factory-direct pricing.

Racecar technology you can drive on the street...

For racecar-style throttle response with street-driving civility, our 13 lb. flywheel works great on all E36 3-series, E36 M3, and E46 3-series cars when using the hybrid M3/M5 clutch kit.

Note:
minor additional chattering or noise while in neutral may be experienced in some cars due to transmission build tolerances, type of fluid used, and temperature.

Compare pricing!

package with flywheel
and clutch kit

UUC brand "B"
Genuine BMW
clutch kit *
$759.00 $859.00
Performance Organic $999.00 $1,099.99
Kevlar ** $1099.00 $1,299.99
Segmented kevlar ** $1099.00 $1,299.99
cerametallic $1,149.00 not available
6-puck Ceramic $1,099.00 $1,199.99
* consists of genuine BMW E36 M3 pressure plate, E34 M5 clutch kit, release bearing

** Due to wear/glazing characteristics, Kevlar is recommended for road-course track use only and not for regular street use.

[ CLICK HERE ] to order






Shop these features:

construction: CNC machined 6061-T6 aluminum
dowel pin hole: enlarged like factory-fit.
friction plate: replaceable, 1050 steel.

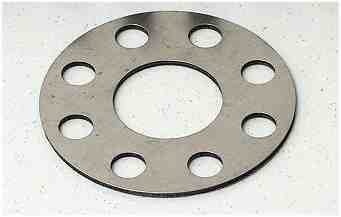

bolt mounting surface: stainless steel gaul plate included.
balancing: 8000rpm
weight: 13 lb
throwout bearing
& clutch used:
E36 M3 pressure plate, E34 M5 clutch kit, release bearing required
fits: E46 1999-2005 330¹, 328, 325, 323
E36 1992-1999 M3¹, 328, 325², 323²
Z3 - all models³ including M Roadster/Coupe
E39 1996-2005 530i¹, 528i, 525i
E34 1992-1995 525i

¹
5-speed models only
²
should use E36 M3 slave cylinder
³ 2.5, 2.3, 1.9, 1.8 models should use E36 M3 slave cylinder
source: Made in USA

Professional installation recommended.


13 lb: part # LFWLE362
